DIMENSION 328 mm (W) x 457 mm (H) x 400 mm (D)
Are designed to for n.1 instrument with manifold and our full range of optional accessories.

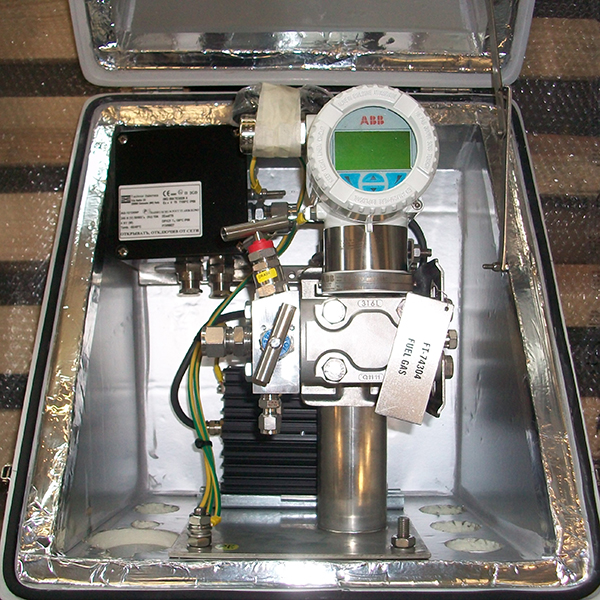

CPS 150
Cassetta Protezione Strumenti
DIMENSION 412 mm (W) x 470 mm (H) x 400 mm (D)
Are designed to for n.1 instrument with manifold and our full range of optional accessories.

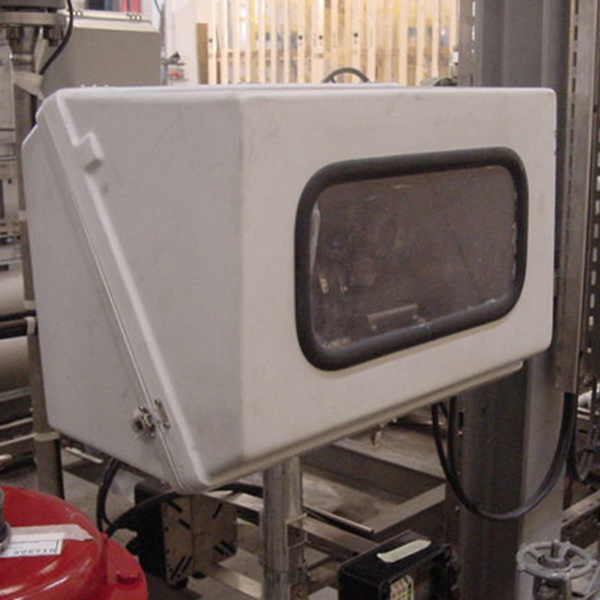

CPS 200
Cassetta Protezione Strumenti
DIMENSION 672 mm (W) x 457 mm (H) x 400 mm (D)
Are designed to for n.2 instruments with manifolds and our full range of optional accessories.

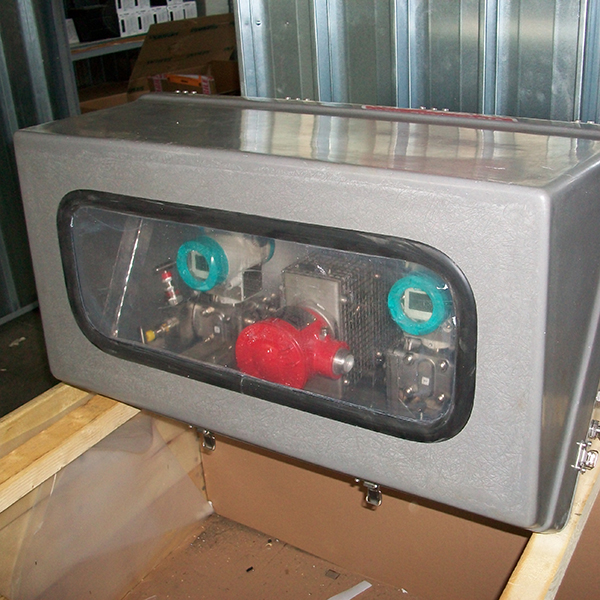

CPS 300
Cassetta Protezione Strumenti
DIMENSION 812 mm (W) x 470 mm (H) x 400 mm (D)
Are designed to for n.3 instruments with manifolds and our full range of optional accessories.
Ideal for pressure, differential pressure and case type instruments in combination with manifolds, air sets, and purge meters.
Top-hinged for easy access to process instruments from the front, top, or either side.
Standard lid-support bracket keeps the lid open.
Common options include mounting kits, heaters and factory-installed tempered glass windows.
The boxes are made of fiberglass reinforced polyester with a thickness of 5 mm, gray RAL 7035.
Constituted by the union of a fixed lower half-shell with a mobile upper half-shell, the opening is maintained in a safe manner with a hinge in stainless steel, the closure may be made (only on a voluntary basis) acting on it.
The neoprene gasket mounted on the bottom ensures a perfect tightness and impermeability to liquids and dust.
The closing of the Junction Box is provided by stainless steel hooks mounted on the side.

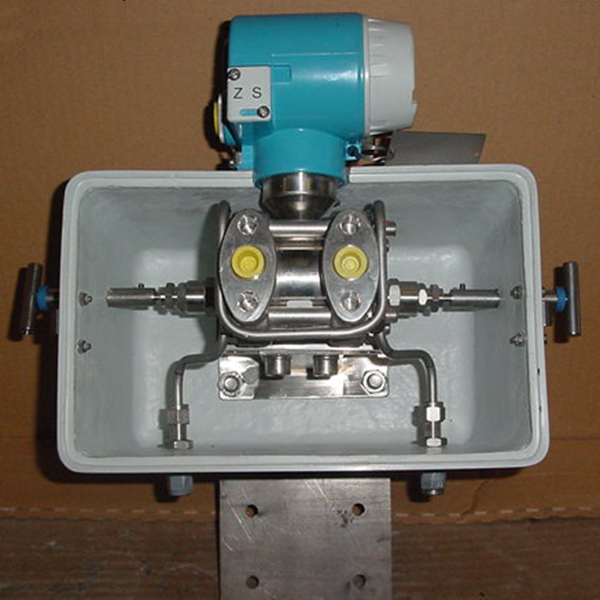

GCS 80
Cassetta Protezione Strumenti
The cover is draw to contain, to isolate and to heat the body of pneumatic end electronic transmitters.

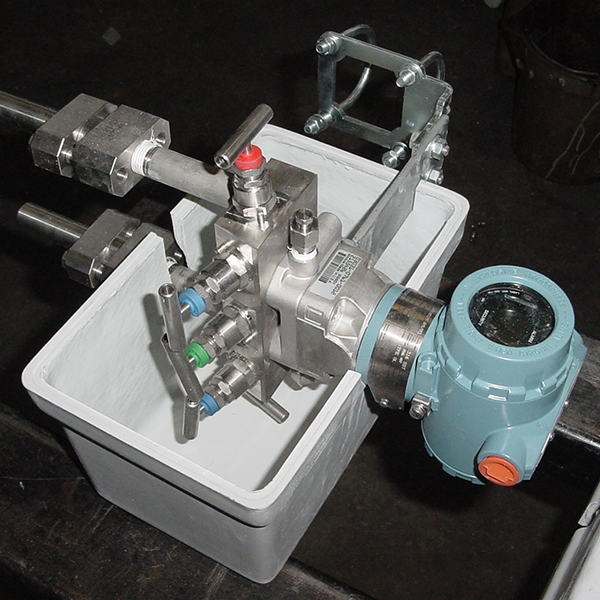

GCS 100
Cassetta Protezione Strumenti
The cover is draw to contain, to isolate and to heat the body of pneumatic end electronic transmitters.

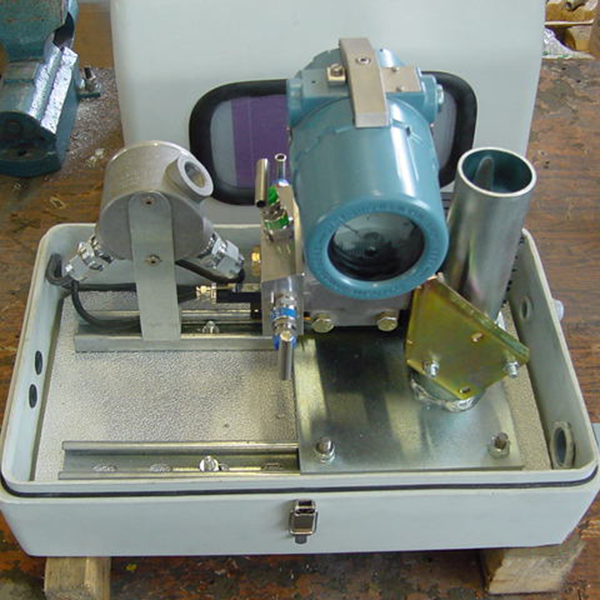

CPS 101
Cassetta Protezione Strumenti
Are designed to for n.3 or more instruments with manifolds and our full range of optional accessories.

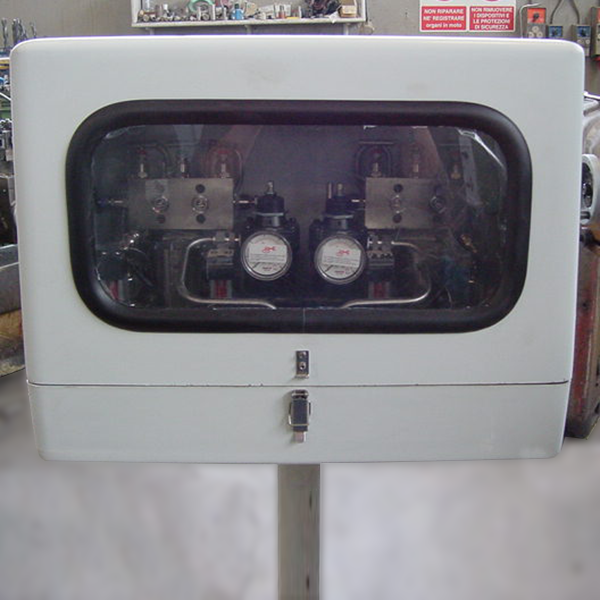

CPS 201
Cassetta Protezione Strumenti
Are designed to for n.3 or more instruments with manifolds and our full range of optional accessories.
These instrument protection boxes have the same technical characteristics of CPS series protection with the advantage of having 100% of the internal accessibility.
The boxex are made in GRP (fiberglass reinforced polyester) 5 mm thickness, RAL 7035 gray.
The instrument protection boxes are constituted by the union of a fixed lower part with a fully removable top casing.
The neoprene gasket mounted on the bottom ensure a tightness and a perfect impermeability to liquids and dust.
The closing of the box is ensured by stainless steel hooks mounted at the side.
